Raw Magnets

What Is Permanent Magnet?

When an iron air is introduced into a magnetic field it becomes magnetized, however, when the field is removed only a very small residual magnetic field due to the iron is left.

Hence iron is not a permanent magnetic material. A permanent magnet is when a material remains strongly magnetic after being excited by a magnetic field (magnetizing). A permanent magnetic material must also resist demagnetisation. In other worlds: under normal circumstances it should not lose its magnetism.
Permanent magnets are suitable for use in an impressive ranges of products: magnetic separators, meter, thermostats, toys, motors, household and medical equipment, speakers, etc.

Permanent magnets are available in various shapes, such as rings and blocks.

Ferrite Magnet

  • Pressed from approx. 80% iron oxide and 20% barium oxide or strontium oxide.
  • Ground using diamond wheels.
  • Easily extractable raw material, therefore economic.
  • Operating temperature range: 40 degrees up to +200 degrees.
  • Inert to most environmental substances.
  • Susceptible to impact or bending loads; comparable to ceramic or porcelain.
  • Isotropic ferrite material can be magnetized in several directions.
  • Isotropic ferrite material can be supplied to EN 71.
  • Also available on plastic bonded version.

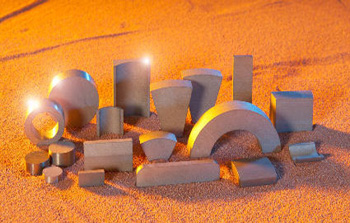

Samarium Cobalt (SmCo)

  • Pressed from the rare earth materials SmCo.
  • Ground with diamond wheels.
  • High energy material.
  • Operating temperature range standard up to +250 degree.
  • Inert to mist environmental substances.
  • Very high resistances to demagnetizing.
  • Also available in plastic bonded version.

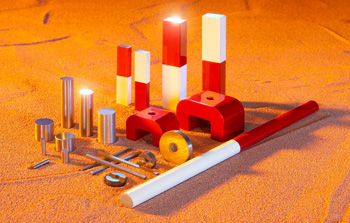

Alnico

  • Cast or sintered material from aluminum-nickel-cobalt.
  • Operating temperature range: -270 degrees up to +450 degrees.
  • Low resistance to demagnetizing.
  • Worked with diamond or Carborundum.
