Forklift Attachment

Categories

get consultation

(+65) 6744 4288

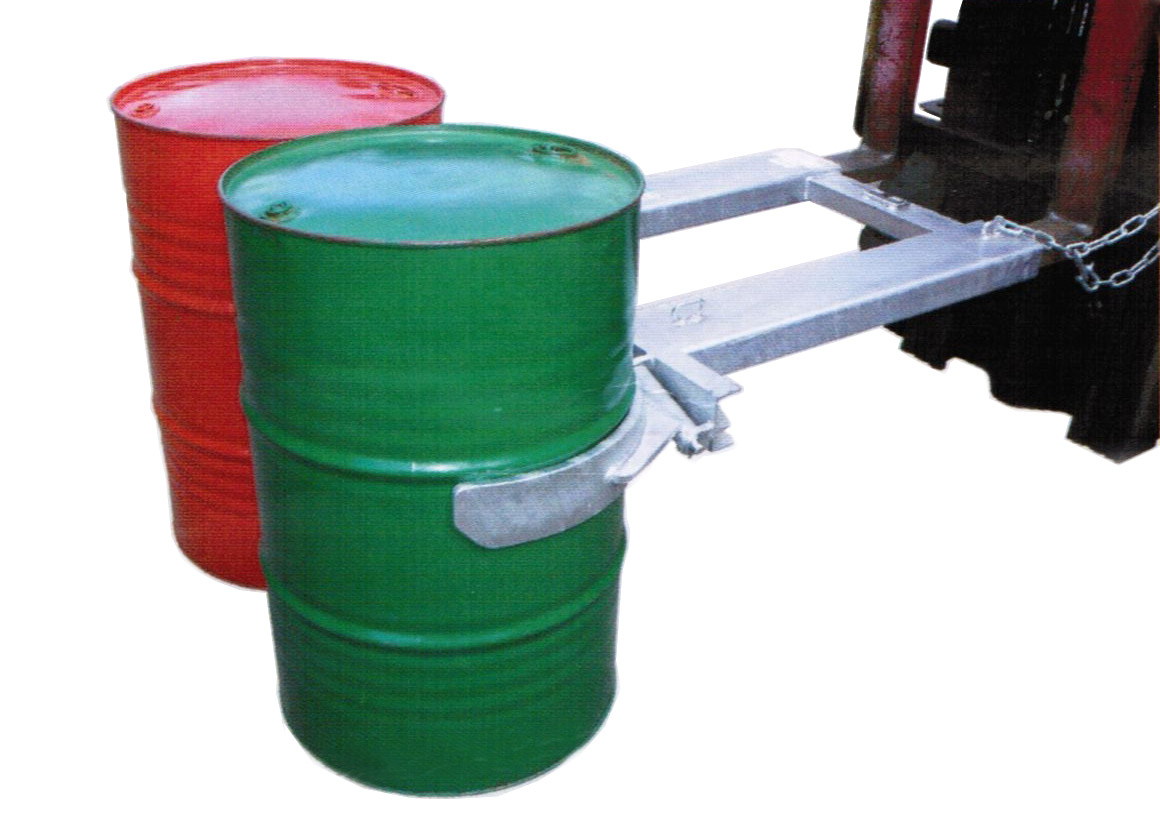

Drum Lifter

  • Designed for standard 205 litres steel drums
  • Fully automatic clamping action enables safe and precise placement of drum without operator having to leave the driver’s seat
  • Handle either a single drum or 2 drums
  • Available in either painted or galvanised finish

Specifications

Model BGN-1 BGN-2
No of Drums 1 2
Safe Working Load kg 500 1000
Fork Pocket Centres mm 325 585
Fork Pocket Size mm 185 x 60
Load Centre mm 1210 / 1250

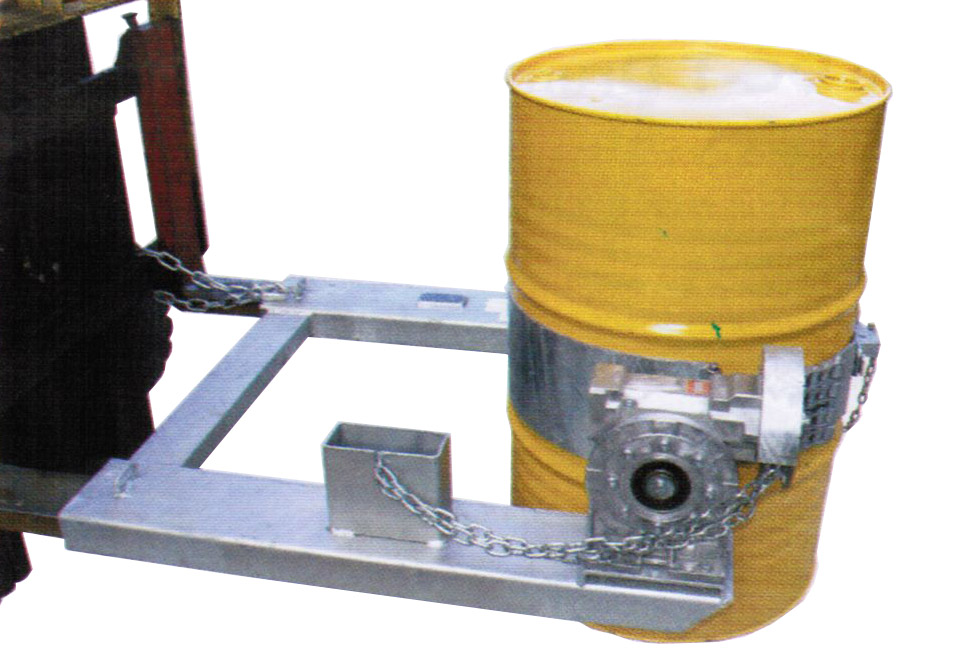

Drum Rotator

  • Designed to lift and rotate 205 litres drums through 360º
  • The drum is secured into the attachment with a locking belly strap
  • Galvanised finish

Specifications

Model DER40H
Safe Working Load kg 400
Fork Pocket Centres mm 840
Fork Pocket Size mm 185 x 60
Load Centre mm 940

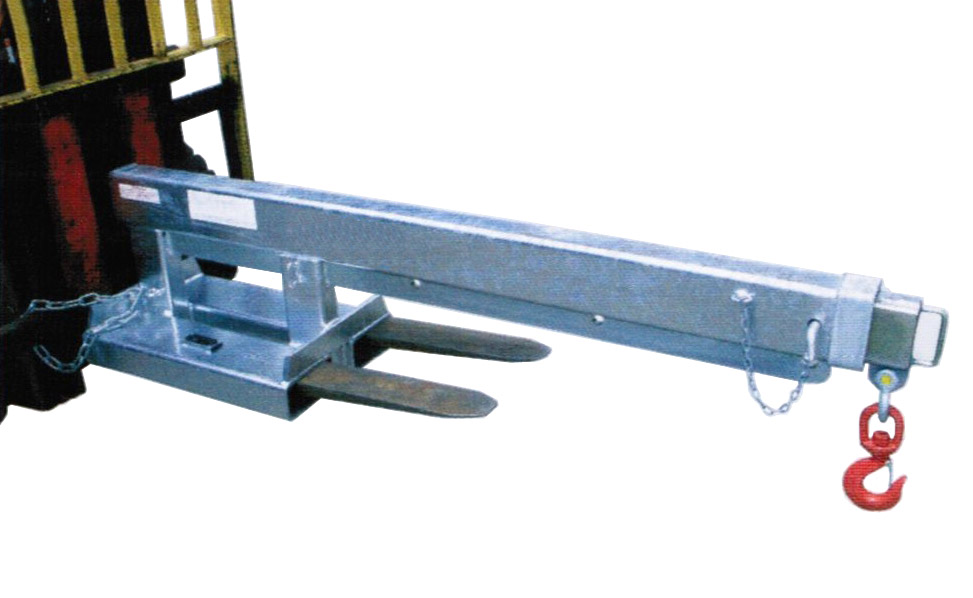

Fixed Jib (Short & Long)

  • Designed as an affordable general-purpose jib able to manoeuvre in confined spaces
  • Service ranges from 2.5 tons up to 10 tons
  • Comes with short and long design

Specifications

Model FJCS25 FJCL25
Safe Working Load kg 750 ~ 2500 240 ~ 2500
Fork Pocket Centres mm 275
Fork Pocket Size mm 185 x 65
Extension mm 790 ~ 1960 950 ~ 3520
Model FJCS50 FJCL50
Safe Working Load kg 1500 ~ 4750 480 ~ 4750
Fork Pocket Centres mm 275
Fork Pocket Size mm 185 x 75
Extension mm 780 ~ 1960 935 ~ 3520

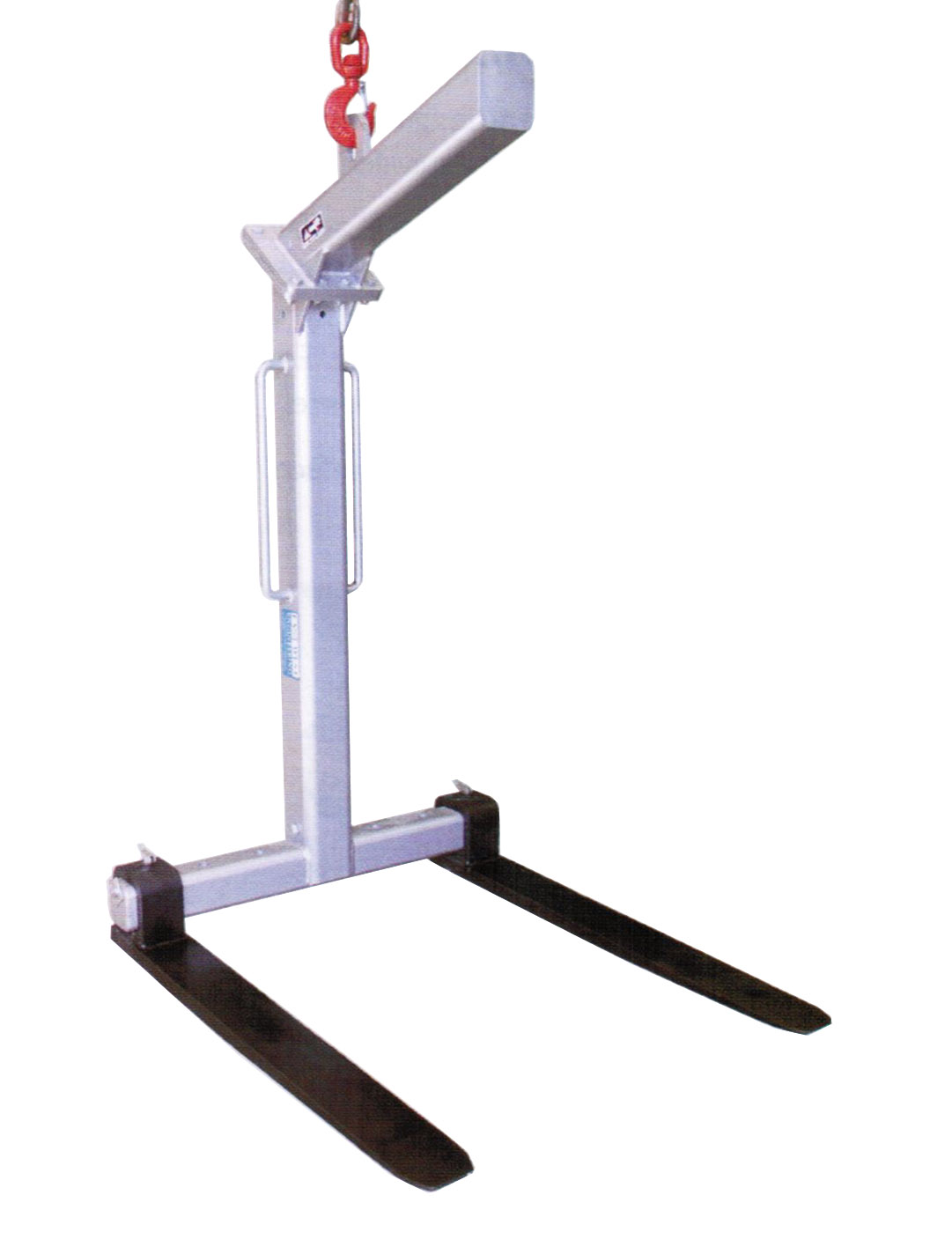

Pallet Hook

  • Automatic pallet hook is self-leveling for easy operation
  • Self-balances using an internal spring mechanism ensuring the lifting eye is in the correct position
  • Safe working load: 2000kg
  • Load Centre: 600mm
